Liquid Soap Bottle Blow Molding Machine

2025-10-15

Liquid soap bottle blow molding machine is used to manufacture plastic bottles for liquid soap, lotions, shampoo, detergent, and other viscous products. The most common method for liquid soap bottles is extrusion blow molding machine (EBM).

Liquid Soap Bottle Blow Molding Machine-Kingplas Machinery Co., Ltd

Extrusion Blow Molding Process:

1. Plastic Extrusion & Parison Formation:

Plastic resin (usually HDPE or PP) in pellet form is fed into the blow molding machine’s hopper. The pellets are heated and melted in an extruder barrel.

The molten plastic is forced through a die head, forming a continuous, hollow tube called a parison.

Liquid Soap Bottle Blow Molding Machine-Kingplas Machinery Co., Ltd

2. Mold Clamping:

A two-part mold, machined with the precise shape of the bottle (including handle details if needed), closes around the hanging parison.

3. Blowing & Inflation:

A blow pin is inserted into the neck of the parison. High-pressure air is blown through this pin, inflating the soft parison like a balloon until it presses firmly against the cold inner walls of the mold.

4. Cooling & Ejection:

The plastic is allowed to cool and solidify in the mold, often assisted by internal water channels. The mold opens, and the finished bottle is ejected.

The excess plastic at the top and bottom (called flash) is trimmed off in a separate station or within the mold.

Liquid Soap Bottle Blow Molding Machine-Kingplas Machinery Co., Ltd

How to Choose Suitable Blow Molding Machine for Liquid Soap Bottles?

1. Production Output (Bottles/Hour): Match the liquid soap bottle blowing machine‘s capacity to your business needs.

2. Bottle Size and Design: Can the blow molding machine handle the volume and shape of your bottles? Does it need to produce bottles with handles?

3. Plastic Material: Most liquid soap bottles are HDPE (High-Density Polyethylene) due to its chemical resistance, rigidity, and low cost. PP (Polypropylene) is also used. Ensure the machine is suited for your material.

4. Automation Level: Do you need a fully automatic system with integrated trimming and conveying, or a semi-automatic machine for smaller batches?

5. Mold Requirements: The mold is a separate, significant investment. Work with a reputable mold maker to design a high-quality mold that works with your chosen blow molding machine.

6. Supplier Reputation and Support: Choose a manufacturer with a good track record for reliability and, crucially, strong after-sales service, technical support, and spare parts availability.

Liquid Soap Bottle Blow Molding Machine Video:

Why Choose Kingplas Machinery?

Has 30 years blow molding experience. Our blow molding machine portfolio is designed to handle a wide range of thermoplastic materials, including HDPE, PP, PE, PVC, PC, and PETG, for containers ranging from 10ml to 1250L.

Automatic Extrusion Blow Molding Machines: High-speed continuous extrusion systems (Single/Double Station) for cosmetics, lubricants, and household chemicals.

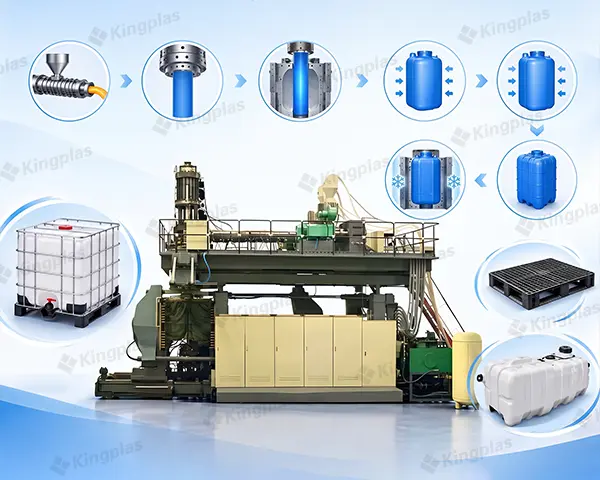

Accumulator Head Blow Molding Machine: Robust solutions for large-scale industrial parts, such as 200L drums, IBC tanks, and automotive components.
Multi-Layer Co-Extrusion Technology: Advanced 2-to-6 layer systems that provide superior barrier properties for agrochemical and fuel tank applications.
Turnkey Solutions: Integrated production lines including precision mold design and auxiliary equipment.
